Virtual Remote Control:
Preservation Risk Management for Web Resources
Nancy Y. McGovern, ECURE 2004

1

VRC Funding

• Part of a 4(5)-year NSF-funded project
  • supported by the Digital Libraries Initiative, Phase 2 (Grant No. IIS-9905955, the Prism Project)
• Also partially funded by a grant from The Andrew W. Mellon Foundation
  • Political Communications Web Archiving
    http://www.crl.edu/content/PolitWeb.htm
• For updates:
  • http://irisresearch.library.cornell.edu/VRC/

2

Current Team

• Anne R. Kenney, Advisor
• Nancy Y. McGovern, Project Manager
• Richard Entlich, Sr. Researcher
• William R. Kehoe, Technology Coordinator
• Ellie Buckley, Digital Research Specialist
• Erica Olsen (recent)
• Carl Lagoze, CIS PI

3

Research Scope

see, "Preservation Risk Management for Web Resources: Virtual Remote Control in Cornell's Project Prism"

by Anne R. Kenney, Nancy Y. McGovern, Peter Botticelli, Richard Entlich, Carl Lagoze, and Sandra Payette in DLib Magazine, January 2002

http://www.dlib.org/dlib/january02/kenney/01kenney.html

4

Virtual...

• because VRC develops models to represent essential features of selected Web sites
• that enable ongoing monitoring over time
• to identify, respond to, and mitigate potential risks to the site integrity and longevity

5

Remote...

1. because VRC is intended for use by cultural heritage institutions
2. interested in the longevity of Web resources
3. residing on remote servers
   not owned or managed by the monitoring institution

6

Control...

• because at the most proactive end of the VRC approach
• a monitoring organization may act to protect another organization's resources
• by agreement or implicit consent
• through notification and/or action

7

Purpose

• Develop a model for research libraries (adaptable to other contexts)
• Support spectrum from passive monitoring to active capture
• Lifecycle support: selection to capture
• Understand nature of Web resources
• Promulgate good practice

8

Types of Web Resources

Two types of initiatives for monitoring and/or capture of:

• Web-based publications [Web site as a means]
• All of (or a subset of) a Web site consisting of pages within a boundary defined by a URL (or a portion of one) [Web site as an end] (VRC)

9

Nature of Risks

Two perspectives on Web-based risk:

• potential liability of an institution based upon the content of its Web site, or a Web site for which it is responsible
• potential threats to the integrity and longevity of a Web resource (VRC)

10

Types of Risks

Include:

• technological obsolescence
• security weaknesses and breaches
• human-error in developing/maintaining sites
• organizational issues; benign neglect
• power and technology failures
• inadequate backup and secondary systems

11

Risk Factors

• Organizational Context
• Combination of indicators
• Monitoring (change/loss over time)
• Triggers (events, organizational, upgrades)
• Degradation of site management indicators

12

VRC Stages

1. Identification
2. Analysis
3. Appraisal
4. Strategy
5. Detection
6. Response

13

Human — Tool Scenario

1. Identification
   • Human: identify Web resources of interest
   • Tool: verify list, expand list
2. Analysis
   • Tool: crawl sites, generate characterizations
   • Human: accept/revise characterizations
3. Appraisal
   • Human: define/review attributes of value
   • Tool: support appraisal, capture results

14

Human — Tool Scenario

4. Strategy
   • Human: develop/review strategies
   • Tool: plot appraisals, compile strategies
5. Detection
   • Human: define risk parameters
   • Tool: identify/assess risks; propose responses
6. Response
   • Tool: propose risk response based on rules; automatic response for some risk categories
   • Human: monitor automated responses; select response based on recommended actions

15

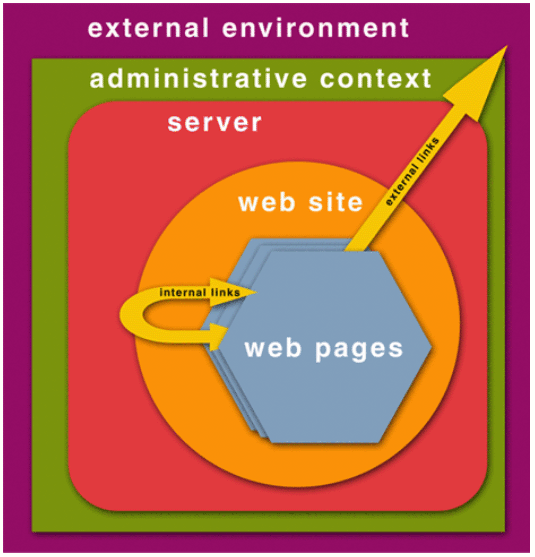

Contextual Layers

16

Server-level Monitoring

• Potential multi-site impact
• Server vulnerabilities put site content at risk
  • deletion or modification
• Patches and new versions of Microsoft IIS and Apache server released frequently
• Apache http server 1.3 security updates
  • to version 1.3.26 on June 18, 2002
  • to version 1.3.27 on October 3, 2002

17

Server-level Monitoring

18

VRC Toolkit

• Identify tools for each stage (adopt, adapt, define, devise)
• Leverage existing; apply to longevity
• Analyze steps - automated and manual
• Formalize protocol
• Provide a framework to map existing, plug gaps with developments

19

VRC Toolkit

Development steps:

• extensive literature review
• development of tool categories
• definition of categories and test protocols
• survey existing tools for evaluation
• select representative for testing
• highlight findings in category summaries

20

Web Crawling

• traversing Web sites via links
• a capability common to most tools, but with different purposes and results
• the VRC toolkit needs more than just Web crawlers

21

Tool Categories

• Link checkers
• Web site monitors
• Web crawlers
• Site management
• Change Management
• Site Mapping (includes visualization)

22

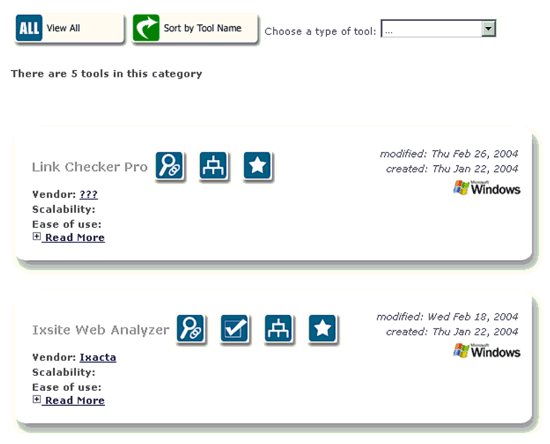

Tool Inventory

23

24

25

OAIS Issues

• Pre-Ingest: Selection options
• Ingest: Capture
  • vs. monitoring
  • Targets, level and frequency
• Archival Storage: Formats
• Access: Site(s) vs. Page(s)
• AIP: Metadata issues

26

Management Issues

• frequency of capture — determined by
  • nature of sites/pages
  • events: technological, organizational
  • resources
• well-informed crawling
• valuable vs. archival

27

Mandate

• to fully document the site by capturing all changes to the pages/sites
• to capture significant changes to pages/sites
• to record periodic versions of the site
• to capture one-time copy of pages/sites

28

Current Activities

• VRC Preservation Risk Management Program:
  • Map stages to tool requirements
  • Apply to potential organizational scenarios
  • Enable risk/response scenario development
• Toolkit:
  • Revise and populate tool inventory
  • VRC Control Site

29

Future Projects

• Develop approach for building human sexuality collection: capturing Web blogs and other Internet communications
• State Government Web site case study
• Demonstrators for toolkit scenarios

30

For Discussion

What would the VRC approach have to address to be of interest, value, and/or potential impact for archivists and records managers?

31
