Metadata:
Setting the Scene or a Basic Introduction

By
Wendy Duff
University of Toronto, Faculty of Information Studies
ECURE

1

Outline

• Definitions
• Purpose and Functions
• MetaMap
• Principles and Practicalities
• A Few Schemes
• Processes
• Issues

2

Definitions

• Data about data
  • Data "factual information (as measurement of statistic) used as a basis for reasoning, discussion or calculations." (Webster) Can be numbers, words, sentences, and/or records.
  • The prefix "meta" comes from the Greek and means "among, with, after" or "change" (Webster).

3

Recordkeeping Metadata

• Structured or semi-structured information which enables the creation, management, and use of records through time and within and across domains in which they are created.
• Recordkeeping metadata can be used to identify, authenticate, and contextualize records; and the people, processes and systems that create, manage, and maintain and use them. (Archiving Metadata Group)

4

Elements and Attributes

• Metadata are expressed as groups of elements and attributes. The grouping of elements depends upon their relationships. The elements and attributes can be mandatory or optional.

5

Metadata Schemas

• Schemas are a framework that specifies and describes a standard set of metadata elements and their interrelationships. Schemas provide a formal syntax (or structure) and semantics (or definitions) for the metadata elements. (ISO Metadata for Records)

6

Purpose and Functions

(ISO RM standard)

• Metadata support business and records management processes by:
  • protecting records as evidence and ensuring their accessibility, and usability through time
  • facilitating the ability to understand records
  • supporting and ensuring the evidential value of records
  • helping to ensure the authenticity, reliability, and integrity of records

7

Purpose (Continued)

• supporting/managing access, privacy and rights
• supporting efficient retrieval
• supporting interoperability strategies — enabling capture of records created in diverse technical/business environments and their sustainability
• providing and maintaining logical links between records and the context of their creation.

8

Deciding on Metadata Requirements

• Decisions will be dependent on:
  • business needs
  • the regulatory environment, and
  • risks affecting business operations.
• Metadata assessment may identify which types of metadata need to be applied in different areas of the organisation, depending on business risks or needs. (ISO RM Standard)

9

RM Standard

• 2 perspectives on RM metadata
• Metadata document content, context and structure at time of capture
• Metadata that document RM and business processes throughout life cycle of record including changes to structure or context

10

RM Standard

• Structure includes
  • Physical or technical structure
  • Logical structure — relationship between records

11

Levels of Applications

• Individual Records (also components of records — e.g. separate documents)
• Groups of records, e.g. series
• Entire record systems

12

Modifying Metadata

Modifications necessary because:

• Business activity takes place
• Personnel change
• RM instruments are adopted or changed
• Record locations are changed
• Organizational terminology evolves
• New business systems are obtained.

13

MetaMap

• Mapping metadata initiatives, to try to show relationships among them, and to connect them with the various players involved in their creation and use.
• http://mapageweb.umontreal.ca/turner/meta/english/metamap.html

14

Different Schemas

• People, professions, associations and organizations with biases and various world views develop metadata schema
• "categories are historically situated artifacts, and like all artifacts, are learned as part of membership in a community of practice" — Geoffrey C. Bowker, and Susan Leigh Star, Sorting things out: Classification and its Consequences (Cambridge, Mass.: MIT Press, c1999.), p. 287

15

16

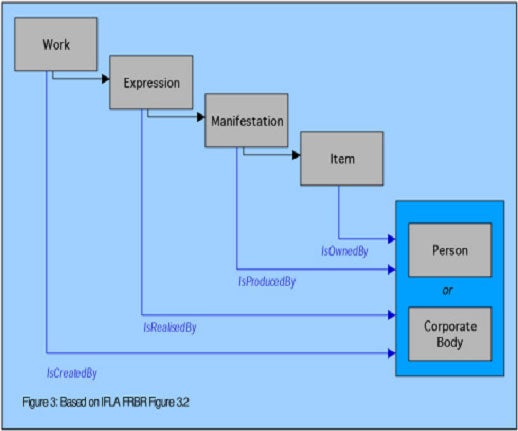

Bibliographic Model

17

The View of Metadata for Discovery and Retrieval

• "A metadata record is something which describes, manages, and catalogues these resources in a consistent and efficient way. This means that someone looking for the resource is more likely to find it."
  (The New Zealand Locator Service (NZGLS) Metadata Standard and Reference Manual)

18

The View of Metadata for Preservation

Preservation Metadata will be used to:

• store information supporting preservation decisions and actions
• document preservation processes, such as migrations, transformations and emulations
• record the effects of preservation processes
• ensure the authenticity of Preservation Masters over time
• enable objects for which the library has assumed preservation responsibility to be identified. Preservation metadata
  • (National Library of New Zealand's metadata standard framework)

19

Metadata Principles for Discovery and Retrieval

• Modularity
  • Namespaces
• Extensibility
• Refinement
• Multilingualism
• Do these principles apply to preservation metadata also?

20

Practicalities

• No one schema will accommodate all the functional requirements of all applications.
• Metadata needed for preservation will overlap with metadata needed for discovery and retrieval but they will also differ in content and level of granularity.

Metadata Schema

• The content, semantic and syntax of a metadata schema will depend upon the domain that promulgates it, the function or purpose of the schema, and the level of aggregation, the type of objects and the type of entities to which it relates
• Represent different types of entities including artifacts, persons, functions, business processes, events, record systems.

23

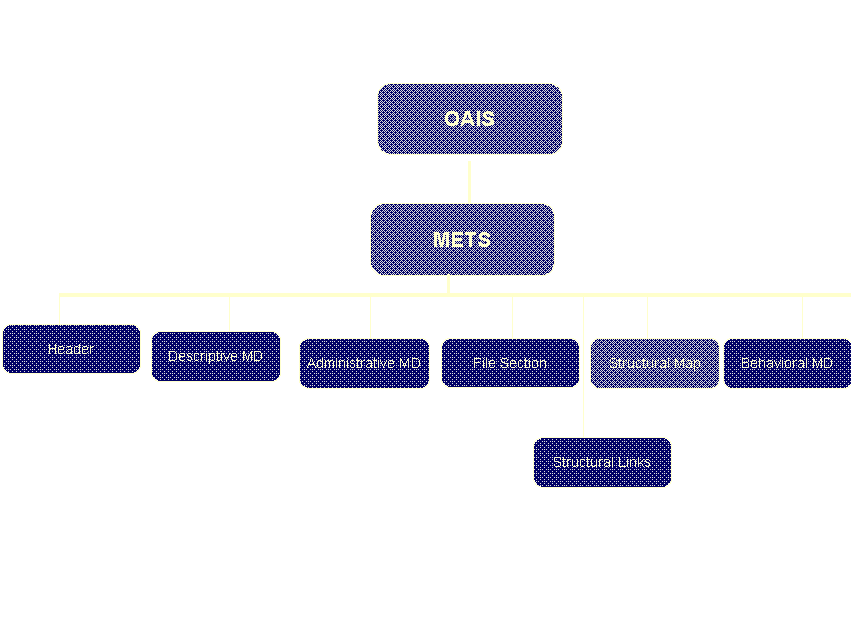

Metadata Schemas and Models that Work Together

• OAIS
  • A reference model
• Metadata Encoding and Transmission Standard
  • (METS) developed by the library community, provides a data structure for exchanging, displaying, and archiving digital objects
• NISO Z39.87 Technical Metadata for Digital Still Images
  • describes what fields are necessary in a database for preserving digital images.

24

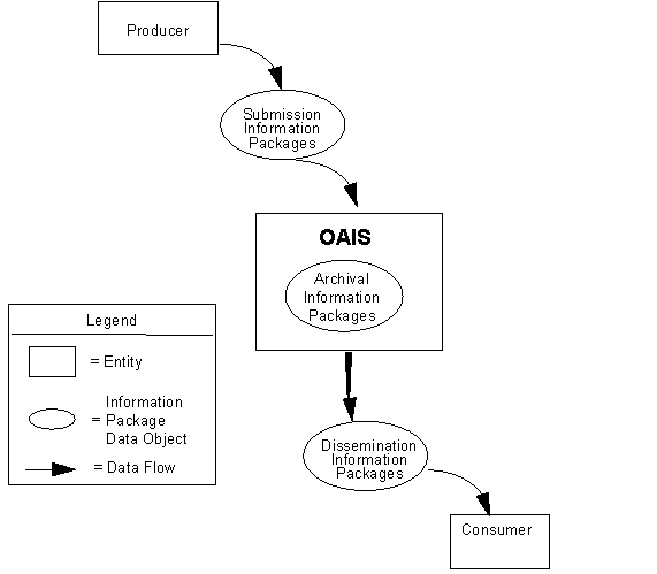

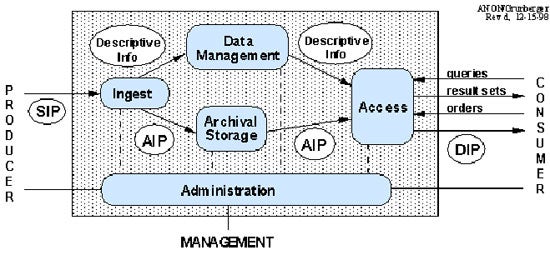

OAIS model — Conceptual framework

25

26

27

METS

(Metadata Encoding & Transmission Standard)

1. The Header — metadata describing the document.
2. Descriptive — This section may point to external descriptive metadata (e.g., a MARC record or an EAD finding aid), or contain internally embedded descriptive metadata, or both.
3. Administrative Metadata — This section provides information regarding how the files were created and stored, intellectual property rights, etc.
4. The file section lists all files containing content which comprise the digital object.
5. The structural map outlines a hierarchical structure for the object, links elements to content files and related metadata.
6. The structural links section records the existence of hyperlinks between nodes in the hierarchy outlined in the Structural Map.
7. A behavior section can be used to associate executable behaviors with content in the METS object.

28-29

30

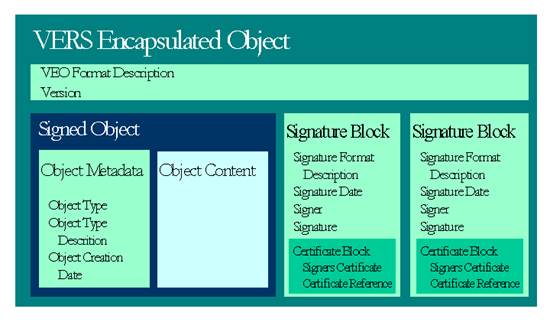

VERS

• A VEO includes metadata that supports the management, finding, and retrieval of the electronic record.
• A VERS record contains one or more documents, each of which may be stored as one or more encoding (physical file formats).

31

32

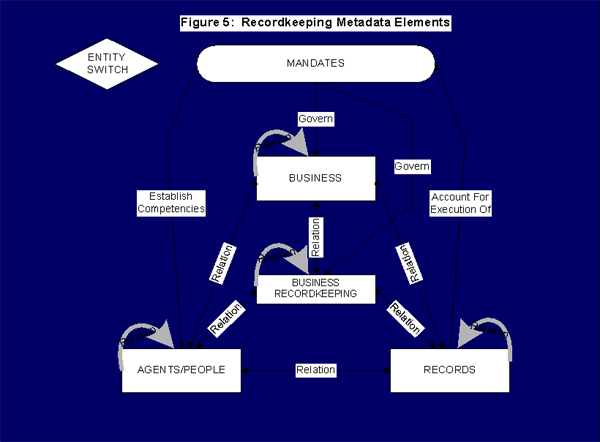

Record Metadata

33

Roles and Responsibilities

• Records management professionals - define schemes, write policies, train and monitor.
• Employees ensure the accuracy and completeness of metadata for which they are responsible.
• Executives ensure internal controls are in place so people can access and use records
• IT personnel ensure the reliability, integrity, etc. of systems that capture and manage metadata.

34

Process for Metadata Management

• Defining policies and methods
• Creating and maintaining metadata
• Creating and maintaining structures for managing metadata
• Determining how metadata should be captured
• Documenting and enforcing standard definitions
• Storage of metadata

34

Processes for Metadata Maintenance

• Monitoring to ensure integrity of metadata
• Security measures
• Recovery mechanisms incase of system failure — back up procedures
• Migration through technological change

36

Issues

• No one metadata schema will fulfill all functions, so how do we ensure interoperability across schema?
  • Crosswalks are not a panacea
  • Role of RDF — supports the reuse and exchange of vocabularies
• How much standardization do we need?
  • Can intelligent agents overcome the need to standardize?

37

More Issues

• Who is responsible for metadata creation?
  • People need to understand benefit of supplying metadata
  • How can the creation and authoring of metadata be automated?
• Costs and Benefits of Metadata
  • How much does metadata cost to create, to manage?
  • How can we reduce the cost of metadata creation while increasing the benefits?
    • Limit the types of file formats?
    • Tools for metadata extraction?
    • Reuse metadata from other sources?
    • Repurposing digital objects?
• How can we convince managers that metadata is important and needs funds?
• How do we promote metadata stewardship program?
• How do we choose among all the metadata schemes?

38-39
